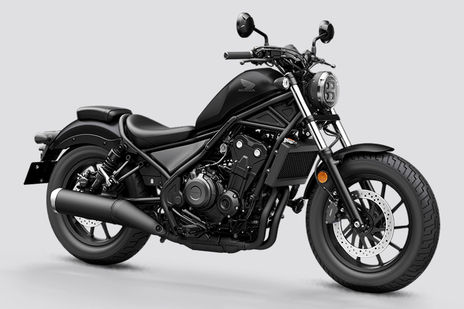

Honda Rebel 500 STD
Key Specs & Features of Rebel 500 STD
Engine | 471 cc |
Power | 47.5 PS |
Torque | 43.3 Nm |
Kerb Weight | 191 kg |
Brakes | Double Disc |
Tyre Type | Tubeless |
Honda Rebel 500 STD
Estimated Price | Rs.4,50,000* |
Honda Rebel 500 STD Specifications
Mileage | - |
Displacement | 471 cc |
Engine Type | Liquid-cooled, DOHC |
No. of Cylinders | 1 |
Max Power | 47.5 PS @ 8500 rpm |
Max Torque | 43.3 Nm @ 6000rpm |
Front Brake | Disc |
Rear Brake | Disc |
Fuel Capacity | 11.2 L |
Body Type | Cruiser Bikes |
Honda Rebel 500 STD Features
ABS | Dual Channel |
Speedometer | Digital |
Odometer | Digital |
Tripmeter | Digital |
Fuel gauge | Yes |
Honda Rebel 500 STD Specifications
Engine and Transmission
Engine Type Refers to the design and configuration of the engine. Most petrol bikes typically use either a single-cylinder, twin-cylinder, or occasionally a multi-cylinder (like a four-cylinder) engine. | Liquid-cooled, DOHC |
Displacement | 471 cc |
Max Torque Represents the highest rotational force output by the engine, usually measured in Newton-meters (Nm) or pound-feet (lb-ft). It indicates the engine's pulling power. | 43.3 Nm @ 6000rpm |
No. of Cylinders Indicates the total count of combustion cylinders in the engine. Common configurations include single-cylinder, twin-cylinder, and four-cylinder setups. | 1 |
Cooling System Describes the method used to dissipate heat from the engine. Petrol bikes often use air-cooling or liquid-cooling systems to maintain optimal operating temperatures. | Liquid Cooled |
Valve Per Cylinder Refers to the number of intake and exhaust valves present in each cylinder. Most modern petrol bike engines have two or four valves per cylinder. | 4 |
Starting Describes how the engine is initiated. Most petrol bikes use electric starters, kick starters, or both, to commence engine operation. | Self Start Only |
Fuel Supply | Fuel Injection |
Clutch Enables the rider to disconnect the engine from the transmission temporarily, allowing for gear changes and neutral operation. | Wet multiplate |
Gear Box Indicates the arrangement of gears that transmit power from the engine to the wheels, allowing the rider to adjust speed and torque. | 6-Speed |
Bore These measurements describe the diameter (bore) and length (stroke) of the cylinder in the engine. They directly affect an engine's performance characteristics. | 67 mm |
Stroke These measurements describe the diameter (bore) and length (stroke) of the cylinder in the engine. They directly affect an engine's performance characteristics. | 66.8 mm |
Compression Ratio Reflects the ratio of the maximum volume in the cylinder (when the piston is at the bottom) to the minimum volume (when the piston is at the top) during the engine cycle. Higher compression ratios generally lead to more efficient combustion. | 10.7:1 |
Features
Instrument Console This refers to the display panel on a petrol bike that shows essential information like speed, RPM, fuel level, and other indicators such as engine temperature and gear position. | Digital |
Speedometer Displays the current speed of the bike in kilometers per hour (km/h) or miles per hour (mph), providing crucial information for safe riding. | Digital |
Tripmeter Tracks the distance traveled during a specific journey or trip, enabling riders to monitor their mileage for individual rides. | Digital |
Odometer Shows the total distance covered by the bike since its inception, providing a comprehensive record of its usage | Digital |
Seat Type | Single |
Features and Safety
Speedometer Displays the current speed of the bike in kilometers per hour (km/h) or miles per hour (mph), providing crucial information for safe riding. | Digital |
Odometer Shows the total distance covered by the bike since its inception, providing a comprehensive record of its usage | Digital |
Tripmeter Tracks the distance traveled during a specific journey or trip, enabling riders to monitor their mileage for individual rides. | Digital |
Fuel Gauge | Digital |
Pass Switch | Yes |
Chassis and Suspension
Body Type | Cruiser Bikes |
Dimensions and Capacity
Width These dimensions describe the physical size of the bike. Width represents the distance across the widest part of the bike, length is the distance from front to back, and height is the vertical measurement from the ground to the highest point of the bike. | 820 mm |
Length | 2205 mm |
Height | 1090 mm |
Fuel Capacity | 11.2 L |
Saddle Height Indicates the distance from the ground to the top surface of the bike's seat, influencing rider comfort and accessibility, especially for shorter or taller individuals. | 690 mm |
Ground Clearance | 125 mm |
Wheelbase | 1490 mm |
Kerb Weight | 191 kg |
Engine Oil | 3.2 L |
Electricals
Headlight | LED |
Tail Light | LED |
Turn Signal Lamp | LED |
Tyres and Brakes
Front Brake Diameter Refers to the diameter of the disc or drum used for the front brake system on a petrol bike, influencing braking performance and heat dissipation. | 296 mm |
Rear Brake Diameter Indicates the diameter of the disc or drum used for the rear brake system, contributing to the bike's overall braking effectiveness and control. | 240 mm |
Radial Tyre | Yes |
Motor & Battery
Peak Power | 47.5 PS @ 8500 rpm |
Drive Type Describes the configuration of the drivetrain, such as front-wheel drive, rear-wheel drive, or all-wheel drive, affecting traction and handling characteristics. | Chain Drive |
Transmission | Manual |
Charging
Charging At Home | No |
Charging At Charging Station | No |
Underpinnings
Suspension Front | Telescopic forks |
Suspension Rear | Showa twin shock |
Brakes Front | Disc |
Brakes Rear | Disc |
ABS | Dual Channel |
Tyre Size | Front :-130/90-16, Rear :- 150/80-16 |
Wheel Size | Front :-16 inch, Rear :-16 inch |
Wheels Type | Alloy |
Frame | Steel Diamond |
Tubeless Tyre | Tubeless |
