Harley Davidson Dyna Low Rider features and specifications

Harley Davidson is making it possible. They are recreating the feel of the past by bringing back the retro style cruiser look from 1970's to the present. The company has launched Dyna Low Rider at $14,199. With the characteristics of a 1970's bike, this bike has been styled and has added more power and appeal to compete in today.

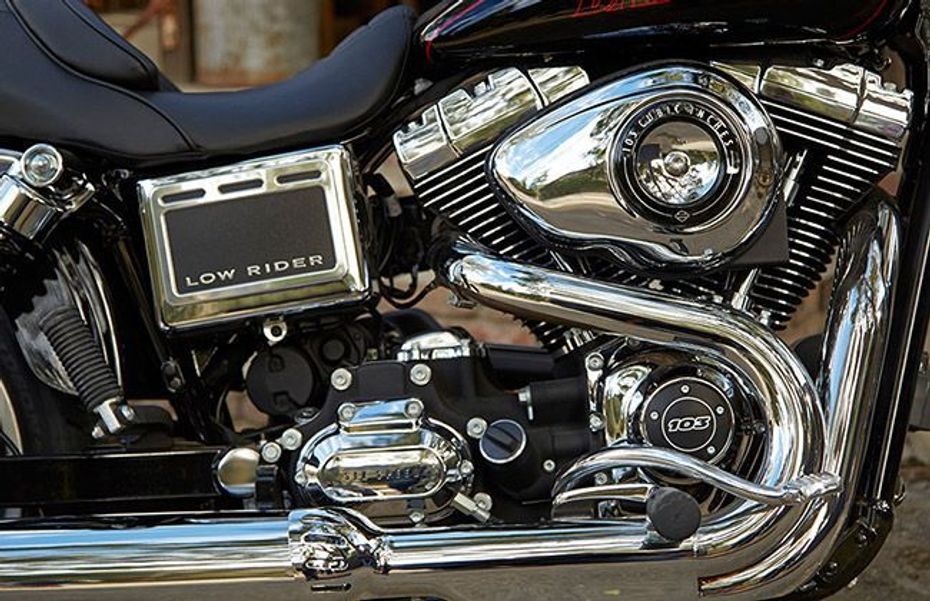

For making Harley Davidson Dyna Low Rider  competitive with the advanced era, the bike is featured with a 1689.5cc, air-cooled, twin cam 103 engine. The engine is mated with the six-speed manual transmission and is tuned to churn out the maximum torque of 405.11Nm at 3,500rpm. With this configuration, extreme riding experience is a sheer blessing. The mileage of the bike is also quite impressive of 18.28km. Not only the manufacturer has made the performance of the bike better but also has improved its appearance.

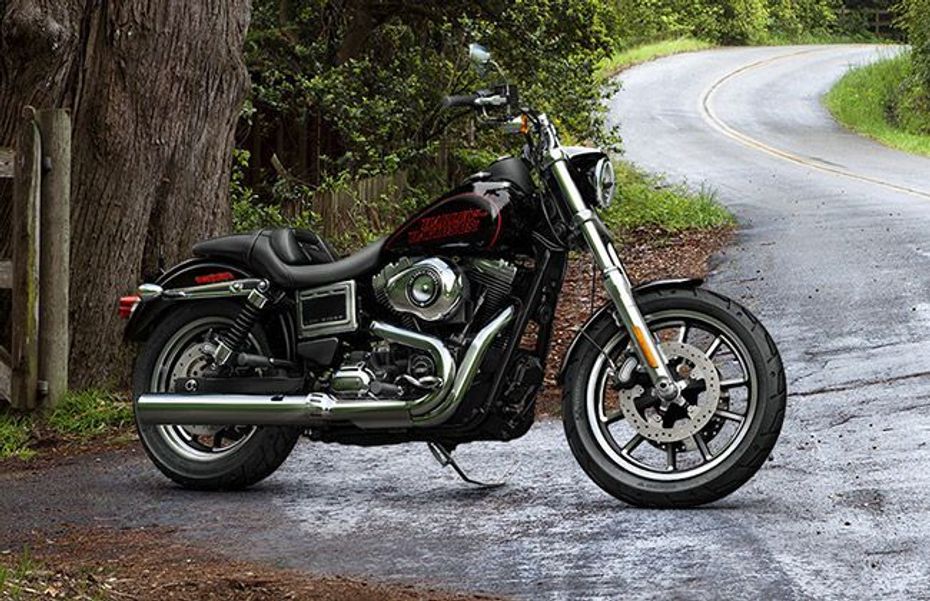

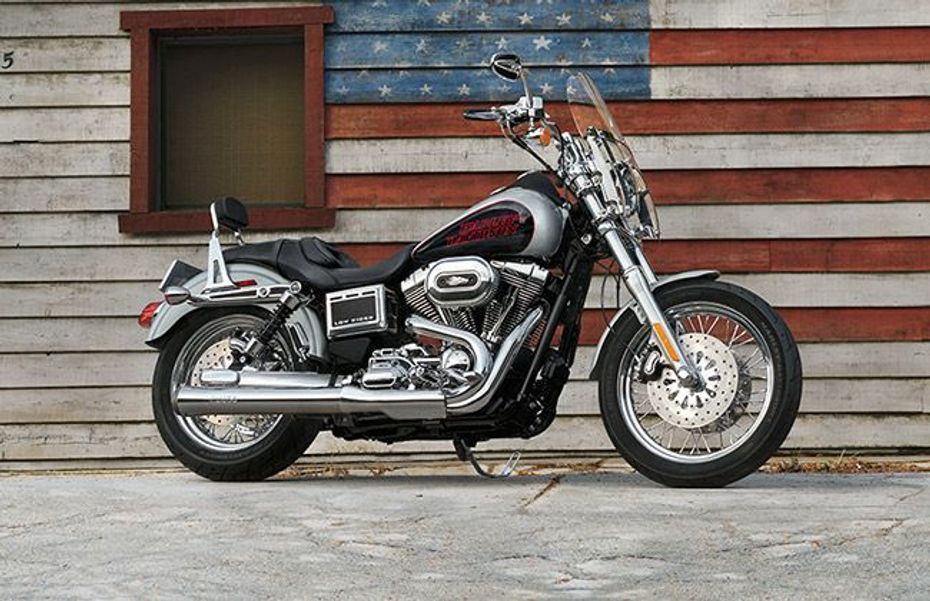

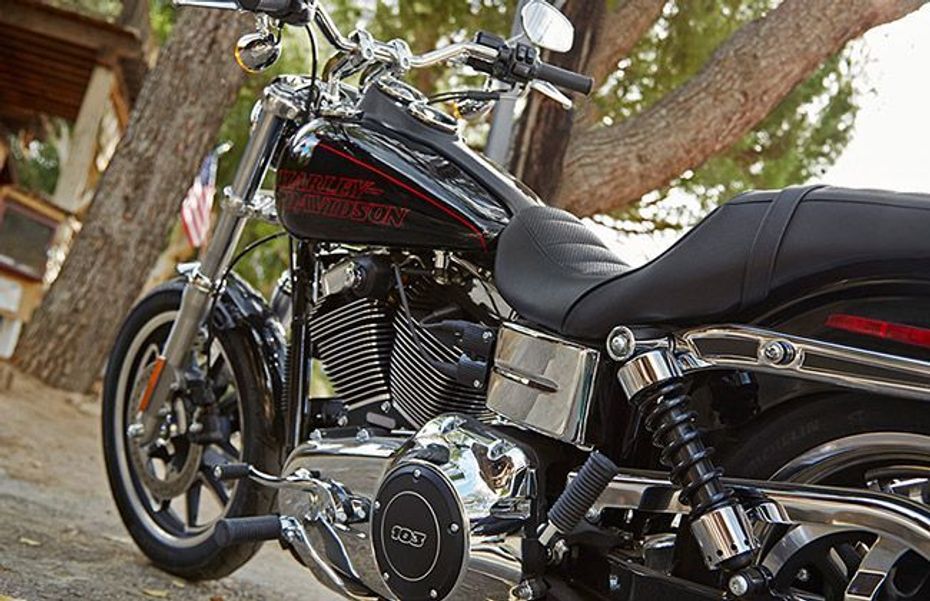

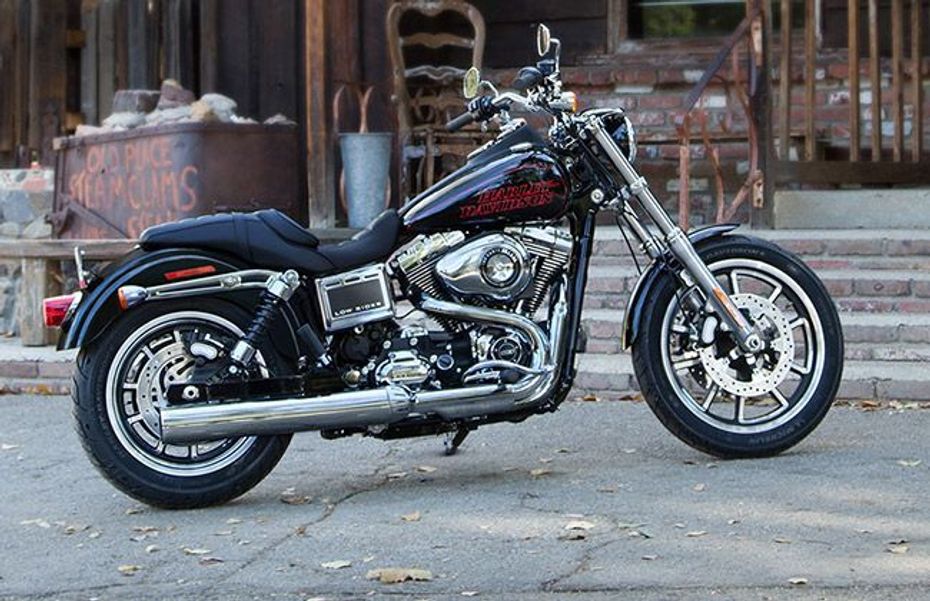

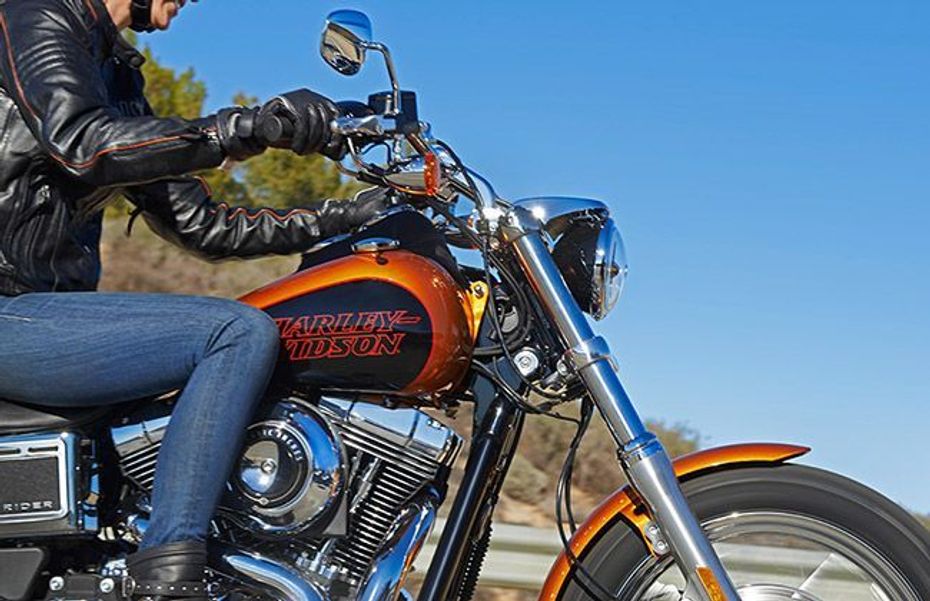

Harley Davidson Dyna Low Rider is a mesmerizing machine, it has premium custom styling, chunky mag wheels, wrinkle black and chrome engine, true custom details, optional two tone paints, 2-into-1 exhaust and tank mounted instrument clusters. The company offers the customer a H-D Smart Security System and Anti-lock braking system as an option. The bike is designed in such a way that height of the rider will not effect on the pleasure of riding. The proper design of the cruiser ascends the riding position and ride becomes extremely comfortable and joyful.

Harley Davidson Dyna Low Ride specifications

ENGINE

Type - Air-cooled, Twin Cam 103
Displacement - 1689.5cc
Bore - 98.298mm
Stroke - 111.10mm
Compression Ratio - 9.6:1
Fuel System - Electronic Sequential Port Fuel Injection (ESPFI)

PERFORMANCE

Engine Torque Testing Method - SAE J1349
Engine Torque - 405.11Nm
Engine Torque - (rpm) 3,500
Lean Angle, Right (deg.) - 29.5
Lean Angle, Left (deg.) - 30.5
Fuel Economy: Combined City/Hwy - 18.28kmpl

DRIVETRAIN

Primary Drive  Chain - 34/46 ratio

Gear Ratios (overall) 1st - 9.311

Gear Ratios (overall) 2nd - 6.454

Gear Ratios (overall) 3rd - 4.793

Gear Ratios (overall) 4th - 3.882

Gear Ratios (overall) 5th - 3.307

Gear Ratios (overall) 6th - 2.79

DIMENSIONS

Length - 2344.4mm
Seat Height, Laden - 645.16mm
Seat Height, Unladen - 680.72mm
Ground Clearance - 104.90mm
Rake (steering head) (deg) - 30.5
Trail - 129.54mm
Wheelbase - 1630.7mm
Tires Specification
Front - 100/90B19 57H
Rear - 160/70B17 73V
Fuel Capacity - 21 liters

Oil Capacity (w/filter) - 2.839 liter

Weight

As Shipped - 292kg
In Running Order - 302kg

CHASSIS

Wheels, Optional Style Type - Chrome Steel Laced
Wheels, Front Type - Black, Split 5-Spoke Cast Aluminium
Wheels, Rear Type - Black, Split 5-Spoke Cast Aluminium
Brakes, Caliper Type - 4-piston fixed front, and 2-piston torque-free floating rear

ELECTRIC Lights (as per country regulation) - Indicator Lamps High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings
