Specifications of Hero Passion Plus
Passion Plus Specs, Features and Price
Hero Passion Plus Brochure
Download Brochure, Discover more!
Hero Passion Plus Stand Out Features
USB charging port near the instrument console makes charging your phone on the go very easy
Hero’s Idle start-stop system helps conserve fuel when riding in heavy traffic by cutting off power when the bike is stopped
Sleek alloy wheels with rim stickers look good on a 100cc bike
Hero Passion Plus Specifications
Mileage (Overall) | 70 kmpl |
Displacement | 97.2 cc |
Engine Type | Air cooled, 4 stroke |
No. of Cylinders | 1 |
Max Power | 8.02 PS @ 8000 rpm |
Max Torque | 8.05 Nm @ 6000 rpm |
Front Brake | Drum |
Rear Brake | Drum |
Fuel Capacity | 11 L |
Body Type | Commuter Bikes |
Hero Passion Plus Features
Charging Point | Yes |
Speedometer | Analogue |
Tripmeter | Digital |
Hero Passion Plus Specifications
Engine and Transmission
Engine Type Refers to the design and configuration of the engine. Most petrol bikes typically use either a single-cylinder, twin-cylinder, or occasionally a multi-cylinder (like a four-cylinder) engine. | Air cooled, 4 stroke |
Displacement | 97.2 cc |
Max Torque Represents the highest rotational force output by the engine, usually measured in Newton-meters (Nm) or pound-feet (lb-ft). It indicates the engine's pulling power. | 8.05 Nm @ 6000 rpm |
No. of Cylinders Indicates the total count of combustion cylinders in the engine. Common configurations include single-cylinder, twin-cylinder, and four-cylinder setups. | 1 |
Cooling System Describes the method used to dissipate heat from the engine. Petrol bikes often use air-cooling or liquid-cooling systems to maintain optimal operating temperatures. | Air Cooled |
Starting Describes how the engine is initiated. Most petrol bikes use electric starters, kick starters, or both, to commence engine operation. | Kick and Self Start |
Fuel Supply | Fuel Injection |
Clutch Enables the rider to disconnect the engine from the transmission temporarily, allowing for gear changes and neutral operation. | Wet Multi Plate |
Gear Box Indicates the arrangement of gears that transmit power from the engine to the wheels, allowing the rider to adjust speed and torque. | 4 Speed Constant Mesh |
Bore These measurements describe the diameter (bore) and length (stroke) of the cylinder in the engine. They directly affect an engine's performance characteristics. | 50 mm |
Stroke These measurements describe the diameter (bore) and length (stroke) of the cylinder in the engine. They directly affect an engine's performance characteristics. | 49.5 mm |
Compression Ratio Reflects the ratio of the maximum volume in the cylinder (when the piston is at the bottom) to the minimum volume (when the piston is at the top) during the engine cycle. Higher compression ratios generally lead to more efficient combustion. | 9.9:1 |
Emission Type Specifies the level of emissions produced by the bike, conforming to regulatory standards. Petrol bikes typically adhere to norms like Euro or BS (Bharat Stage) emissions standards. | bs6-2.0 |
Features

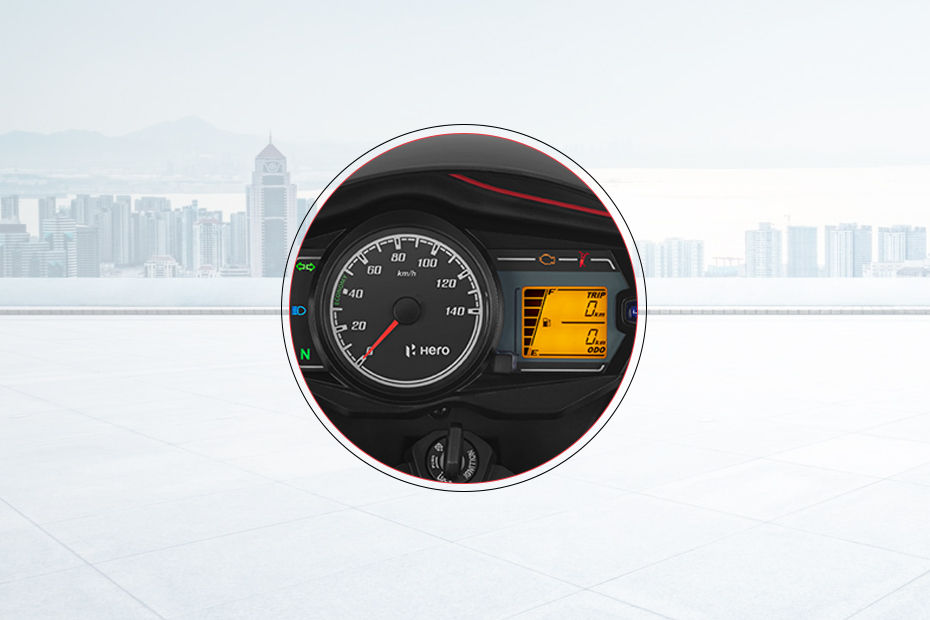

Instrument Console This refers to the display panel on a petrol bike that shows essential information like speed, RPM, fuel level, and other indicators such as engine temperature and gear position. | Analogue and Digital |
USB Charging Port | Yes |
Speedometer Displays the current speed of the bike in kilometers per hour (km/h) or miles per hour (mph), providing crucial information for safe riding. | Analogue |
Tripmeter Tracks the distance traveled during a specific journey or trip, enabling riders to monitor their mileage for individual rides. | Digital |
Seat Type | Single |
Passenger Footrest Provides a designated area for the pillion passenger to rest their feet comfortably during rides. | Yes |
Features and Safety
Charging Point | Yes |
I3s Technology | Yes |
Speedometer Displays the current speed of the bike in kilometers per hour (km/h) or miles per hour (mph), providing crucial information for safe riding. | Analogue |
Tripmeter Tracks the distance traveled during a specific journey or trip, enabling riders to monitor their mileage for individual rides. | Digital |
Fuel Gauge | Digital |
Passenger Footrest Provides a designated area for the pillion passenger to rest their feet comfortably during rides. | Yes |
Mileage and Performance
Overall Mileage | 70 kmpl |
Chassis and Suspension
Body Type | Commuter Bikes |
Dimensions and Capacity
Width These dimensions describe the physical size of the bike. Width represents the distance across the widest part of the bike, length is the distance from front to back, and height is the vertical measurement from the ground to the highest point of the bike. | 770 mm |
Length | 1982 mm |
Height | 1087 mm |
Fuel Capacity | 11 L |
Saddle Height Indicates the distance from the ground to the top surface of the bike's seat, influencing rider comfort and accessibility, especially for shorter or taller individuals. | 790 mm |
Ground Clearance | 168 mm |
Wheelbase | 1235 mm |
Kerb Weight | 115 kg |
Electricals
Headlight | Halogen |
Tail Light | Bulb |
Turn Signal Lamp | Bulb |
Tyres and Brakes
Front Brake Diameter Refers to the diameter of the disc or drum used for the front brake system on a petrol bike, influencing braking performance and heat dissipation. | 130 mm |
Rear Brake Diameter Indicates the diameter of the disc or drum used for the rear brake system, contributing to the bike's overall braking effectiveness and control. | 130 mm |
Motor & Battery
Peak Power | 8.02 PS @ 8000 rpm |
Drive Type Describes the configuration of the drivetrain, such as front-wheel drive, rear-wheel drive, or all-wheel drive, affecting traction and handling characteristics. | Chain Drive |
Battery Type Specifies the type of battery used, commonly lithium-ion (Li-ion), lead-acid, or nickel-metal hydride (NiMH), which impacts energy density, weight, and charging capabilities. | Lead Acid |
Transmission | Manual |
Underpinnings
Suspension Front | Telescopic |
Suspension Rear | Twin Tube |
Brakes Front | Drum |
Brakes Rear | Drum |
Tyre Size | Front :-80/100-18 Rear :-80/100-18 |
Wheel Size | Front :-457.2 mm,Rear :-457.2 mm |
Wheels Type | Alloy |
Frame | Double Cradle |
Tubeless Tyre | Tubeless |
