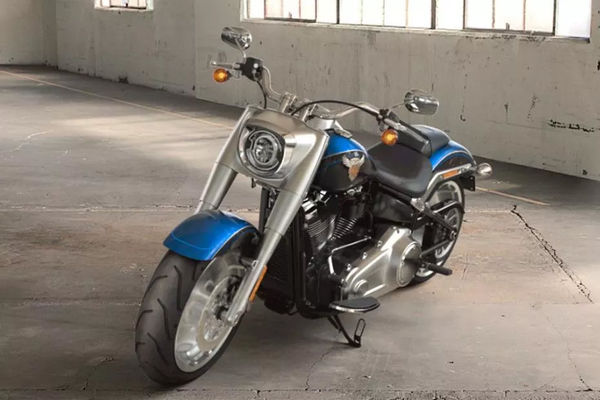

Harley Davidson Fat Boy Anniversary
Rs.20.04 Lakh*
*Ex-showroom price in Delhi
DISCONTINUED
Bike Discontinued in Apr, 2020
Bike Discontinued in Apr, 2020
Key Specs & Features of Harley Davidson Fat Boy Anniversary
Engine | 1868 cc |
Power | NA |
Torque | 156 Nm |
Mileage | 20 kmpl |
Kerb Weight | 322 kg |
Brakes | Disc |
- ABS Dual Channel
- LED Tail Light
- Speedometer Analogue
- Odometer Digital
- Tripmeter Digital
- Fuel gauge
- Tachometer Analogue
- Key Specs
- Top Features
Harley Davidson Fat Boy Anniversary Specifications
Engine and Transmission
Engine Type![]() | Milwaukee-Eight® 114 |
Displacement | 1868 cc |
Max Torque![]() | 156 Nm @ 3000 rpm |
No. of Cylinders![]() | 2 |
Cooling System![]() | Air Cooled |
Valve Per Cylinder![]() | 4 |
Starting![]() | Self Start Only |
Fuel Supply | Fuel Injection |
Clutch![]() | NA |
Ignition | NA |
Gear Box![]() | 6 Speed |
Bore![]() | 102 mm |
Stroke![]() | 114.3 mm |
Compression Ratio![]() | 10.5:1 |
Emission Type![]() | bs4 |
Features
Instrument Console![]() | Analogue and Digital |
Bluetooth Connectivity | No |
Anti Theft Alarm | Yes |
Speedometer![]() | Analogue |
Techometer | Analogue |
Tripmeter![]() | Digital |
Odometer![]() | Digital |
Seat Type | Split |
Stepup Seat | Yes |
Passenger Footrest![]() | Yes |
Features and Safety
Speedometer![]() | Analogue |
Tachometer | Analogue |
Odometer![]() | Digital |
Tripmeter![]() | Digital |
Fuel Gauge | Digital |
Pass Switch | Yes |
Stepup Seat | Yes |
Passenger Footrest![]() | Yes |
Mileage and Performance
Overall Mileage | 20 kmpl |
Chassis and Suspension
Body Type | Cruiser Bikes |
Dimensions and Capacity
Length | 2370 mm |
Fuel Capacity | 19.1 L |
Saddle Height![]() | 670 mm |
Ground Clearance | 115 mm |
Wheelbase | 1665 mm |
Dry Weight | 304 kg |
Kerb Weight | 322 kg |
Electricals
Headlight | LED |
Taillight | LED |
Turn Signal Lamp | LED |
LED Taillights | Yes |
Low Battery Indicator | Yes |
Low Oil Indicator | Yes |
Low Fuel Indicator | Yes |
Tyres and Brakes
Radial Tyre | Yes |
Motor & Battery
Peak Power | NA |
Drive Type![]() | Belt Drive |
Transmission | Manual |
Charging
Charging At Home | No |
Charging At Charging Station | No |
Underpinnings
Suspension Front | Cartridge Fork |
Suspension Rear | Mono Shock |
Brakes Front | Disc |
Brakes Rear | Disc |
ABS | Dual Channel |
Tyre Size | Front :-160/60-R18, Rear :- 240/40-R18 |
Wheel Size | Front :-457.2 mm,Rear :-457.2 mm |
Wheels Type | Cast Aluminum |
Frame | NA |
Tubeless Tyre | Tubeless |
App Features
Anti Theft Alarm | Yes |
Low battery alert | Yes |

Harley Davidson Fat Boy Anniversary Price
The following details are indicative and subject to change.
Fat Boy Anniversary STD 20 kmpl1868 cc DISCONTINUED | ₹2,004,000 |
Harley Davidson Fat Boy Anniversary Colours
Harley Davidson Fat Boy Anniversary is available in the following colours in India. View all bike images with different colour options on BikeDekho.
Scorched Orange
Blue Max
Fat Boy Anniversary Colours
Harley Davidson Fat Boy Anniversary Images
Harley Davidson Fat Boy Anniversary has 7 images, view picture gallery of Fat Boy Anniversary .
Fat Boy Anniversary Images
Fat Boy Anniversary Mileage
The ARAI claimed mileage of Harley Davidson Fat Boy Anniversary is 20 kmpl. This is the claimed mileage for all variants.
Fuel Type | ARAI Mileage |
---|---|
Petrol | 20 kmpl |
